HNC548 325*210*368 TOYOTA DYNA 400 S05C-TB Exedy Clutch Kits

The outer diameter of this pressure plate / Exedy Clutch Kits is 325mm, the inner diameter is 210mm, and the Bolt Hole Circle is 368mm. The net weight of this Cover Assy-Clutch is 13.15kg. EXEDY number of this clutch cover is HNC548; AISIN number is CT-917; EXEDY number is HNC548; VALEO number is 831410 / HNC-12.

OEM reference number(s) comparable with the original spare part number are

OEN 312102930 — HINO

OEN 3121037090 — HINO

OEN 3121037091 — HINO

OEN S312102930 — HINO
OEN 31210-37090 — TOYOTA

The clutch cover is an essential component of the clutch system presenting a separable connection between the engine and the drive train, and furthermore serves the transmission of power.
Alongside the flywheel and the clutch disc, the clutch cover forms a friction system and is fixed to the flywheel via a screw connection of the housing. In doing so, the clutch cover ensures the transfer of the engine torque via the clutch disc to the gear shaft by pressing the clutch disc onto the flywheel. Furthermore, the clutch cover acts as an overload protection (e.g. switching errors) for the whole drive train. The obscured release bearing is the transmission element between the rotating clutch cover on the engine’s part and the fixed actuator system on the gearbox’s part. It is centrally managed and equipped with a self-centring mechanism.

PRODUCT SPECIFICATION

OE NUMBER

USED IN VEHICLES

Model	Engine	Displacement	Power	Hp	Type	Year
TOYOTADYNA 400 Platform/Chassis (XZU_)						(2000/10 - /)
DYNA 400 Platform/Chassis (XZU_) 4.6 TDi	S05C-TB	4613	108	147	Platform/Chassis	03/06 - /

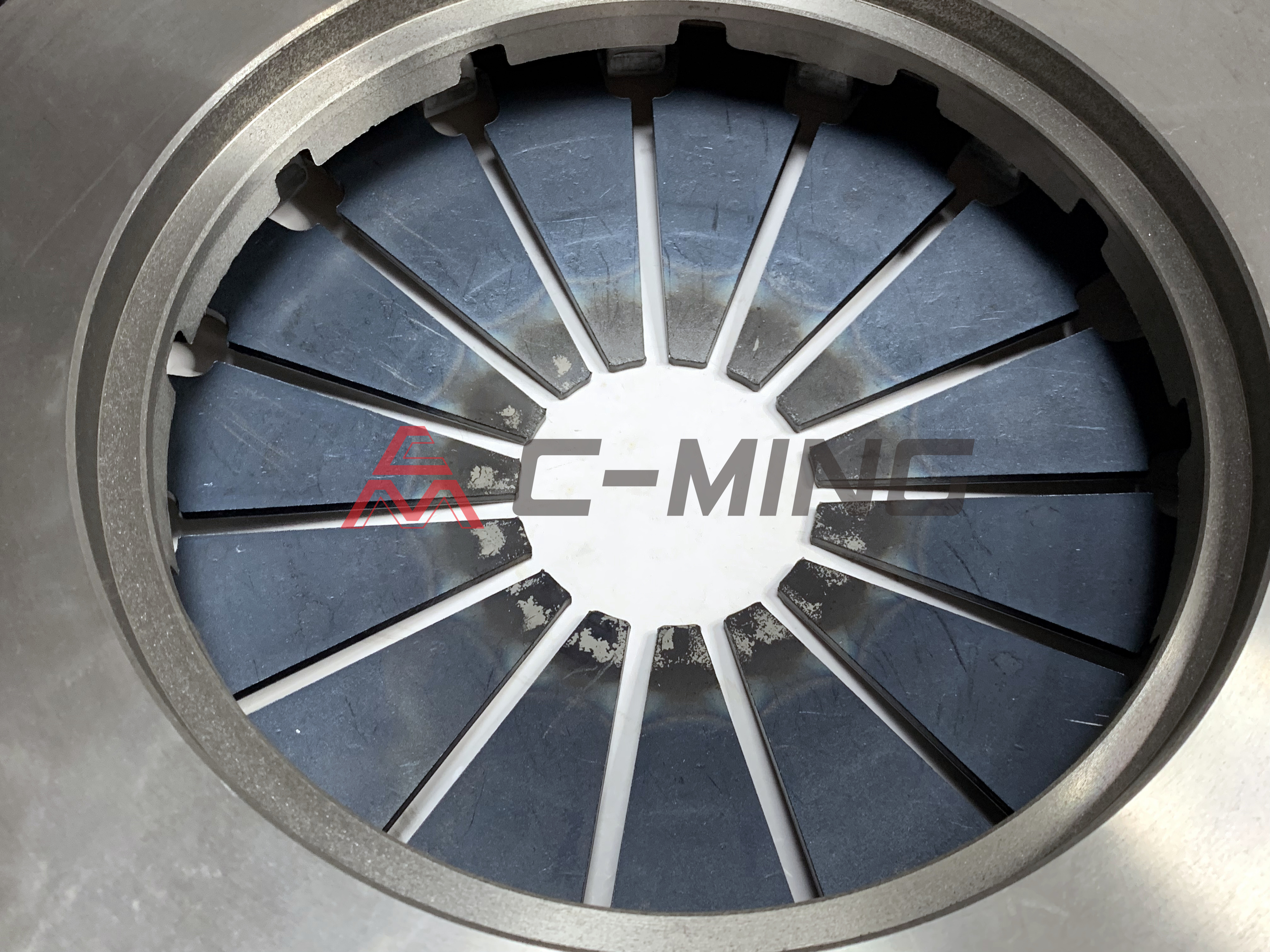

DETAILED IMAGES
