41300-4A020 HYUNDAI H100 D4BH Bus Clutch Pressure Plate Assembly

OE number of this clutch pressure plate assembly is 413004A000 / 413004A020 / 41300-4A020 / 41300-4A000. LuK number is 620 0198 16. SACHS number is 3000 240 001 / 3000 236 001 / 1850 480 618. EXEDY NO. is HYC506 / HYC712. SACHS NO. is 3082 633 102. AISIN NO. is CY-016 / CY-022

The outer diameter of this clutch cover is 240mm, the inner diameter is 160mm, and the Bolt Hole Circle is 276mm. The pressure plate is used for HYUNDAI H100 Bus (P) / HYUNDAI H-1 / STAREX / HYUNDAI H-1 Box / HYUNDAI H-1 Platform/Chassis / HYUNDAI GRACE Bus / HYUNDAI H100 Platform/Chassis / KIA PREGIO Box (TB) / KIA PREGIO Bus with D4BF / D4BH / G4CS / D4CB / D4BB / G6BAJ engine.

PRODUCT SPECIFICATION

41300-4A020 Clutch Cover

·

·

OE NUMBER

ARTNUM

USED IN VEHICLES

Model	Engine	Displacement	Power	Hp	Type	Year
HYUNDAIH100 Bus (P)						(1993/07 - 2004/10)
H100 Bus (P) 2.5 TD	D4BF	2476	59	80	Bus	93/07 - 00/03
HYUNDAIH-1 / STAREX						(1997/06 - /)
H-1 / STAREX 2.5 D	D4BF	2476	57	78	MPV	97/10 - 04/04
H-1 / STAREX 2.5 TCi	D4BH	2476	73	99	MPV	97/10 - 07/12
H-1 / STAREX 2.5 TCi	D4BH	2476	74	101	MPV	04/05 - 07/12
H-1 / STAREX 2.4	G4CS	2351	82	112	MPV	97/06 - 04/04
H-1 / STAREX 2.5 TD	D4BF	2476	59	80	MPV	97/06 - 04/04
H-1 / STAREX 2.4 4WD	G4CS	2351	82	112	MPV	98/02 - 04/04
H-1 / STAREX 2.5 TD 4WD	D4BF	2476	59	80	MPV	98/02 - 04/04
H-1 / STAREX 2.5 TD 4WD	D4BH	2476	73	99	MPV	01/03 - 04/04
H-1 / STAREX 2.5 TD 4WD	D4BH	2476	74	101	MPV	01/11 - 04/04
H-1 / STAREX 2.5 CRDi	D4CB	2497	81	110	MPV	06/06 - 07/12
H-1 / STAREX 2.6 TDiC	D4BB	2607	63	86	MPV	97/10 - 04/04
HYUNDAIH100 Box						(1993/07 - 2004/12)
H100 Box 2.6 D	G6BAJ	2659	57	78	Box	99/10 - 04/12
H100 Box 2.5 TDiC	D4BF	2476	59	80	Box	98/06 - 03/10
HYUNDAIH-1 Box						(1997/10 - 2007/12)
H-1 Box 2.5 TD	D4BH	2476	74	101	Box	01/10 - 04/04
H-1 Box 2.5 TD	D4BF	2476	59	80	Box	00/03 - 00/09
H-1 Box 2.4	G4CS	2351	82	112	Box	00/03 - 04/04
H-1 Box 2.5 TD	D4BH	2476	73	99	Box	00/03 - 04/04
H-1 Box 2.6 CRDi	D4BB	2607	79	107	Box	97/10 - 07/12
HYUNDAIH-1 Platform/Chassis						(2000/06 - 2005/10)
H-1 Platform/Chassis 2.5 D	D4BH	2476	73	99	Platform/Chassis	00/06 - 05/10
HYUNDAIGRACE Bus						(1993/07 - 2004/10)
GRACE Bus 2.5 TD	D4BF	2476	59	80	Bus	98/06 - 01/10
GRACE Bus 2.6 D	G6BAJ	2659	57	78	Bus	99/10 - 04/10
HYUNDAIH100 Platform/Chassis						(1993/07 - 1997/12)
H100 Platform/Chassis 2.5 D	D4BF	2476	59	80	Platform/Chassis	96/05 - 97/12
KIAPREGIO Box (TB)						(1997/10 - /)
PREGIO Box (TB) 2.5 TCi D	D4BH	2476	69	94	Box	02/09 - /
KIAPREGIO Bus						(1995/08 - 2004/09)
PREGIO Bus 2.5 D	D4BH	2477	69	94	Bus	95/08 - 04/09

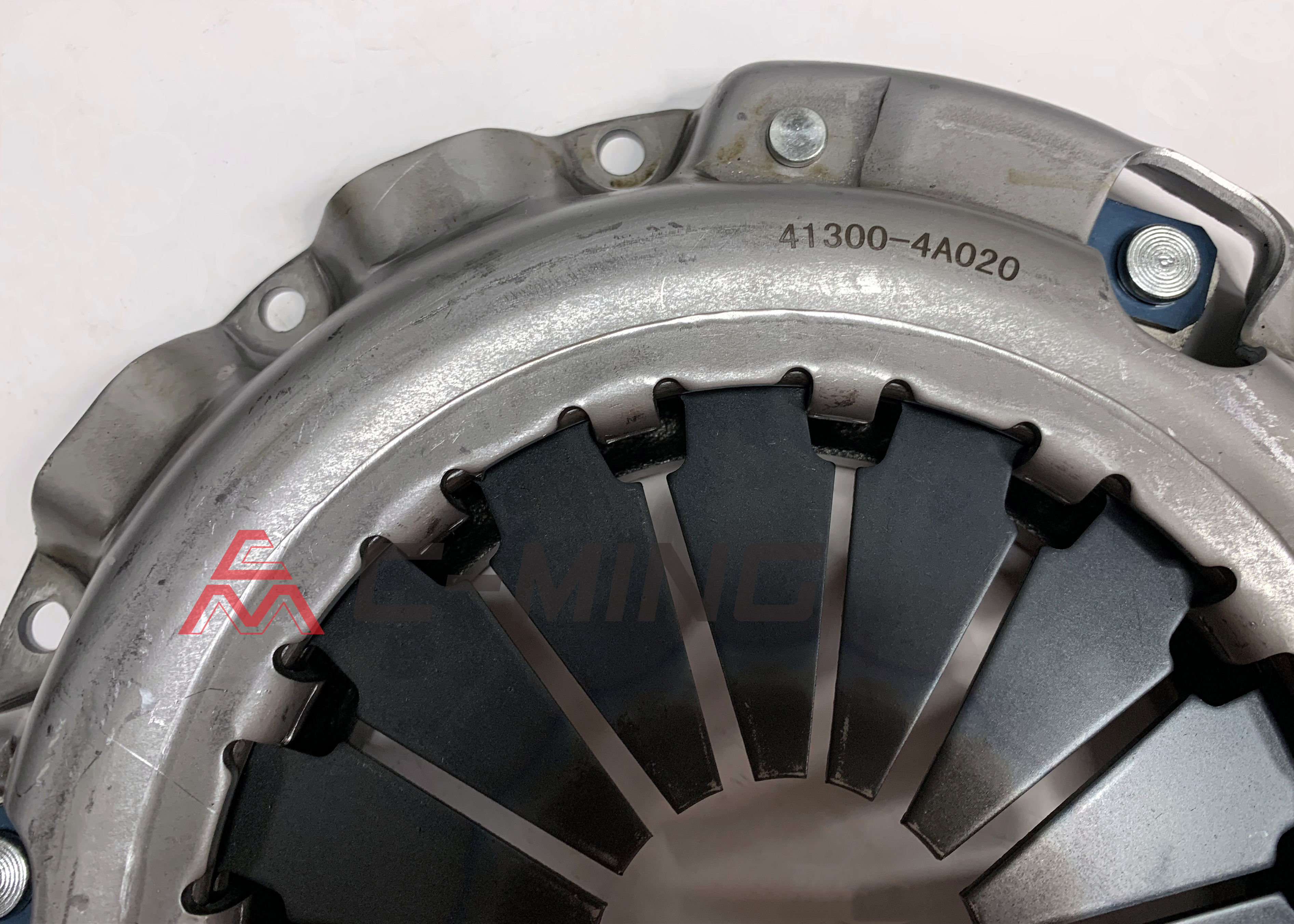

DETAILED IMAGES
