Toyota 1KD-FTV Clutch Disc 260*21*29.8 DTX-146 Toyota Clutch Kits

The outer diameter of this Clutch Plate / TOYOTA Clutch Kit is 260mm, the inner diameter is 170mm, the hub profile is 29.8, and there are 21 splines. This clutch disc is used for TOYOTA HIACE IV Bus / TOYOTA LAND CRUISER 90 / TOYOTA HIACE III Box / TOYOTA HIACE IV Box / TOYOTA HILUX III Pickup with KD-FTV / 2KD-FTV engine. The OE number of the clutch disk assembly is 31250-0K205 / 31250-26241 / 31250-26172 / 31250-26170 / 31250-0K060 / 31250-0K203 / 31250-0K202 / 31250-0K204 / 31250-26171 / 31250-0K070 / 31250-25190 / 31250-26240. AISIN number is DTX-146. EXEDY number is TYD122U / TYD317.

Product Specification

OEM

ARTNUM

USED IN VEHICLES

Model	Engine	Displacement	Power	Hp	Type	Year
TOYOTAHIACE IV Bus (LH1_)						(1995/08 - /)
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	65	88	Bus	01/11 - 06/08
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	75	102	Bus	01/11 - 06/08
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	70	95	Bus	06/08 - /
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	86	117	Bus	06/08 - /
HIACE IV Bus (LH1_) 2.5 D-4D 4WD	2KD-FTV	2494	86	117	Bus	06/10 - /
TOYOTALAND CRUISER 90 (_J9_)						(1995/04 - /)
LAND CRUISER 90 (_J9_) 3.0 D-4D (KDJ90, KDJ95, KDJ 125)	1KD-FTV	2982	120	163	Closed Off-Road Vehicle	00/10 - /
TOYOTAHIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_)						(1989/08 - 2004/08)
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.5 D-4D 4WD	2KD-FTV	2494	65	88	Box	01/08 - 04/08
TOYOTAHIACE IV Box (LXH1_, RZH1_, LH1_)						(1995/08 - /)
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	86	117	Box	06/09 - /
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D 4WD	2KD-FTV	2494	86	117	Box	06/09 - /
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	65	88	Box	01/11 - 06/08
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	75	102	Box	01/11 - 06/08
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	70	95	Box	06/09 - /
TOYOTAHILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_)						(2004/11 - /)
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D 4WD	2KD-FTV	2494	75	102	Pickup	05/08 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D-4D 4WD	2KD-FTV	2494	88	120	Pickup	07/12 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D-4D	2KD-FTV	2494	88	120	Pickup	07/12 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 3.0 D-4D 4WD	1KD-FTV	2982	126	171	Pickup	07/12 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D-4D	2KD-FTV	2494	75	102	Pickup	05/07 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 3.0 D (KUN16)	1KD-FTV	2982	120	163	Pickup	05/08 - 06/09
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D-4D 4WD	2KD-FTV	2494	106	144	Pickup	07/12 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 3.0 D-4D 4WD	1KD-FTV	2982	145	197	Pickup	08/05 - /

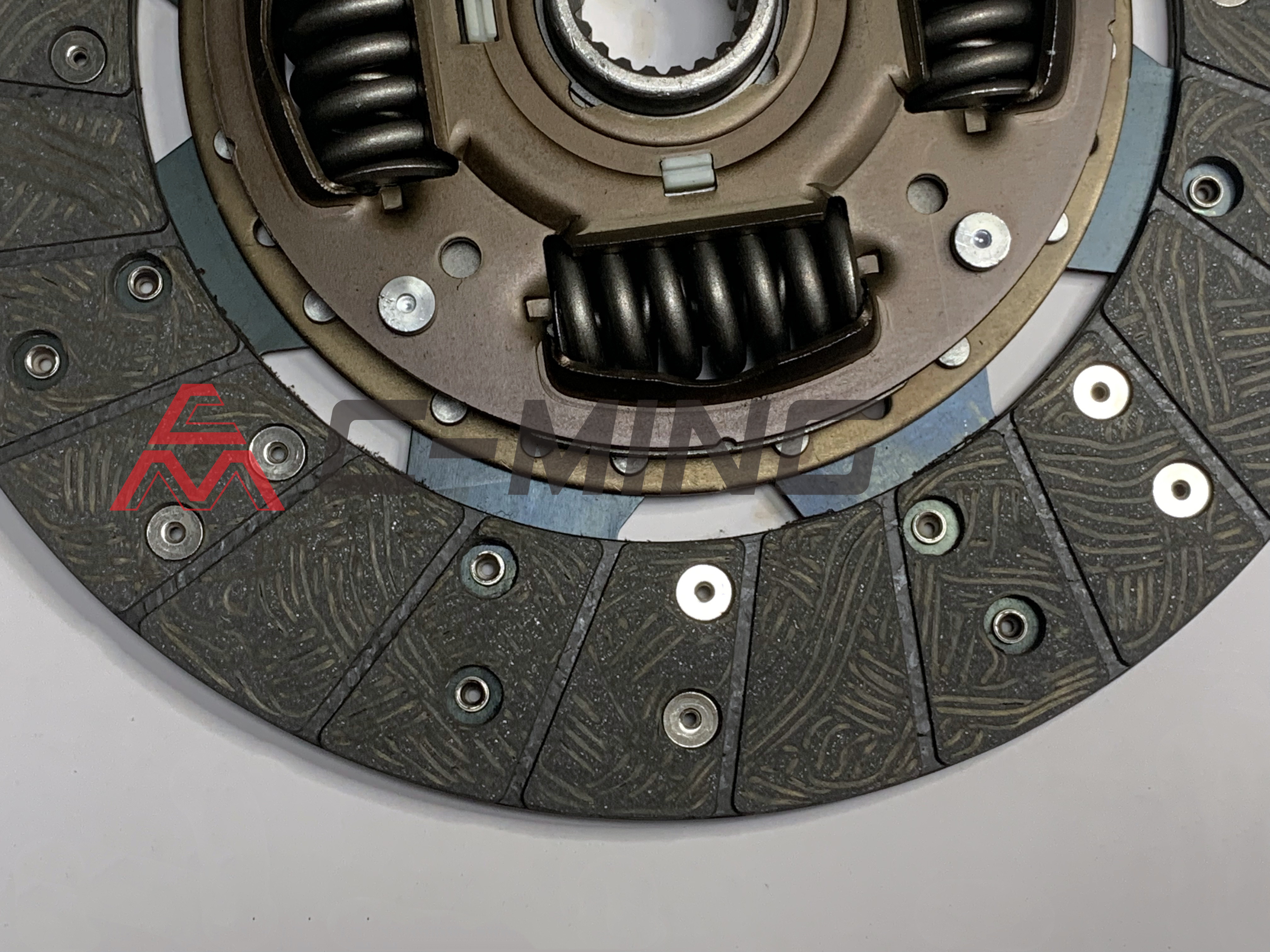

DETAILED PICTURES
