312500K204 Clutch Disc 260*170*21*29.8 2KD-FTV Toyota Clutch Kits

The specification of this clutch disk assembly is 260*170*21*29.8mm. The outer diameter is 260mm, the inner diameter is 170mm, hub profile is 29.8mm and the teeth quantity is 21. OE number of this clutch plate / Toyota Clutch Kits is 312500K204 / 31250-0K205 / 31250-26241 / 31250-26240 / 31250-25190 / 31250-0K070 / 31250-26171 / 31250-0K204 / 31250-0K202 / 31250-0K203 / 31250-0K060 / 31250-26170 / 31250-26172. EXEDY number is TYD317 / TYD122U. This clutch disc is applicable for Toyota HIACE IV Bus / LAND CRUISER 90 / HIACE IV Box / HILUX III Pickup with 2KD-FTV / 1KD-FTV engine.

Product Specification

OE Number

Used in Vehicles

Model	Engine	Displacement	Power	Hp	Type	Year
TOYOTAHIACE IV Bus (LH1_)						(1995/08 - /)
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	65	88	Bus	01/11 - 06/08
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	75	102	Bus	01/11 - 06/08
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	70	95	Bus	06/08 - /
HIACE IV Bus (LH1_) 2.5 D-4D	2KD-FTV	2494	86	117	Bus	06/08 - /
HIACE IV Bus (LH1_) 2.5 D-4D 4WD	2KD-FTV	2494	86	117	Bus	06/10 - /
TOYOTALAND CRUISER 90 (_J9_)						(1995/04 - /)
LAND CRUISER 90 (_J9_) 3.0 D-4D (KDJ90, KDJ95, KDJ 125)	1KD-FTV	2982	120	163	Closed Off-Road Vehicle	00/10 - /
TOYOTAHIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_)						(1989/08 - 2004/08)
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.5 D-4D 4WD	2KD-FTV	2494	65	88	Box	01/08 - 04/08
TOYOTAHIACE IV Box (LXH1_, RZH1_, LH1_)						(1995/08 - /)
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	86	117	Box	06/09 - /
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D 4WD	2KD-FTV	2494	86	117	Box	06/09 - /
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	65	88	Box	01/11 - 06/08
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	75	102	Box	01/11 - 06/08
HIACE IV Box (LXH1_, RZH1_, LH1_) 2.5 D-4D	2KD-FTV	2494	70	95	Box	06/09 - /
TOYOTAHILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_)						(2004/11 - /)
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D 4WD	2KD-FTV	2494	75	102	Pickup	05/08 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D-4D 4WD	2KD-FTV	2494	88	120	Pickup	07/12 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D-4D	2KD-FTV	2494	88	120	Pickup	07/12 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 3.0 D-4D 4WD	1KD-FTV	2982	126	171	Pickup	07/12 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D-4D	2KD-FTV	2494	75	102	Pickup	05/07 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 3.0 D (KUN16)	1KD-FTV	2982	120	163	Pickup	05/08 - 06/09
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2.5 D-4D 4WD	2KD-FTV	2494	106	144	Pickup	07/12 - /
HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 3.0 D-4D 4WD	1KD-FTV	2982	145	197	Pickup	08/05 - /

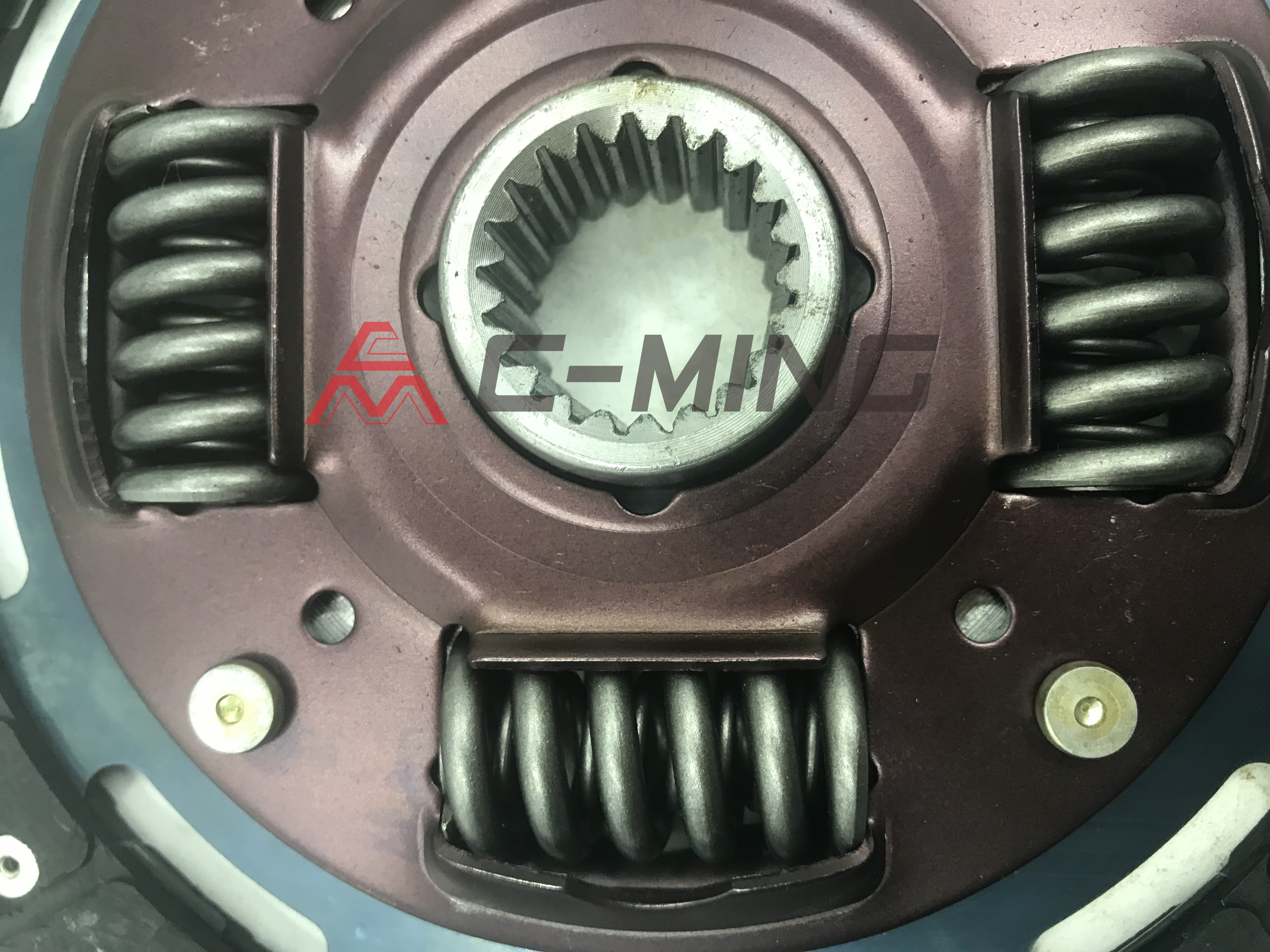

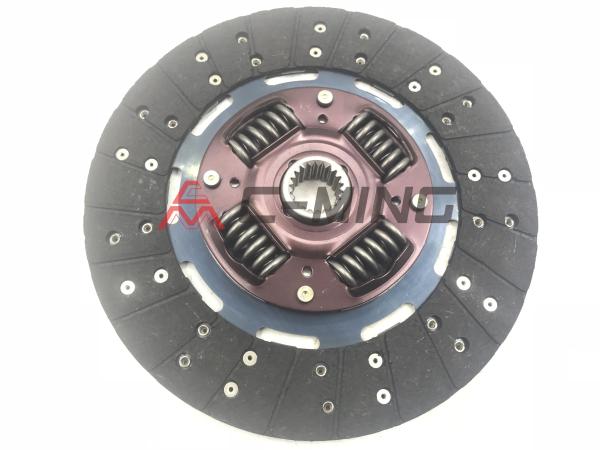

Detailed Images

Chongming (Guangzhou) Auto Parts Co., LTD., a subsidiary of Dajun Clutch, specializes in the production of Passengers Cars Clutch Kits, Commercial Vehicles Clutch Kits, and Agricultural Tractors Clutch Kits with complete specifications and excellent quality, which are mainly sold in the United States, the Middle East, South Ameria, Southeast Asia, Europe and Africa. such as Hino, Isuzu, , , Toyota, Mitsubishi, Nissan, Mercedes-Benz, Renault, Mazda, , Scania, DAF, MAN, FORD, FIAT, NEW HOLLAND, MASSEY FERGUSON, JOHN DEERE, CASE IH, DEUTA-FAHR, FENDT, LANDINI, MCCORMICK, RENAULT, SAME, VALPADANA, etc.
